Counters / Timers



I.   PRESET COUNTERS/TIMERS:(CT Series: Dual Display)

Model: CT6M with Power Failure Backup


  6-Digits with Dual LED Display
  Size: 72 x 72mm

Model: CT6M-2P with Power Failure Backup
  6-Digits with Dual LED Display
  Size: 72 x 72mm

Model: CT6S with Power Failure Backup
  6-Digits with Dual LED Display
  Size: 48 x 48mm

Model: CT4S with Power Failure Backup
  4-Digits with Dual LED Display
  Size: 48 x 48mm

Features:

  Memory Retention: 10 Years
  Mechanical contact or solid state input/output
  Output Modes:  Various - settable from front
  Input Modes:     Various - settable from front
  Electrical/Manual reset
  Power Supply : 100 to 240VAC
  Supplies power for external sensor
  Timer setting from 0.01 sec to 999999 hours
  PNP/NPN Selectable Switch

II.    PRESET COUNTERS/TIMERS:(FX-Series)

Model: FX4 with Power Failure Backup
  4-Digits LED Indication
  Digital Switch Setting Type
  Size: 72 x 72mm

Model: FX6 with Power Failure Backup
  6-Digits LED Indication
  Digital Switch Setting Type
  Size: 72 x 72mm

FEATURES:
  Memory Retention: 10 Years
  Mechanical contact or solid state input/output.
  Output Modes : Various - settable by DIP switches.
  Input Modes : Various - settable by DIP switches.
  Electrical/Manual reset.
  Power Supply : 90 to 264VAC
  Supplies power for external sensor.
  Timer setting from 0.01 sec to 9999 hours.
III. TOTAL COUNTERS/TIMERS:

Model: CT6M-I  with Power Failure Backup
  6-Digits LED Indication
  Size: 72 x 72mm

FEATURES:
  Memory Retention: 10 Years
  Electrical/Manual reset.
  Mechanical contact or solid state input
  Power Supply : 90 to 264VAC
  Supplies power for external sensor.
  Input Modes : Various - settable by DIP switches.
  Timer with memory

IV.  TOTAL COUNTERS:

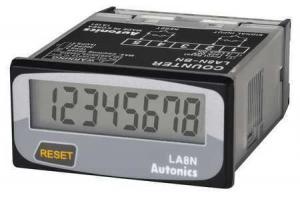

LCD Counter
Model: LA8N-BF
  8-Digits LED Indication
  Size: 48 x 24mm


FEATURES:
  Small size and count up mode only
  Internal lithium battery
  Signal input
     -Universal voltage input:    "H" : 6-240VDC, 24-240VAC
        "L" : 0-2.4VDC,   0-2VAC
  Screw Terminal type(Terminal protection cover)
  LCD Display
  Built-in Microprocessor
  Protection structure IP66(Front panel only)

V.  DIGITAL TACHOMETERS/PULSE METERS:

Digital Tachometers with 5 Digit Display

Model: MP5W  or Equivalent
  5-Digits LED Indication
  DIN Size: W96 x H48mm

FEATURES:
  Power Supply : 100 to 240VAC ± 10%,  50/60Hz
  Measuring Range : 1 to 99999 rpm
  Measuring accuracy : 0.05% ± 1 digit
  Supplies power for external sensor.
  13 various Function Modes
  Supplied with sensor PSN25-5DP
  Meter without PSN25-5DP

VI. PRESET TACHOMETERS/PULSE METERS:

Model: MP5W     Preset, Triple Relay Output (H, GO, L)
  5-Digits LED Indication


  Power Supply : 100 to 240VAC ± 10%,  50/60Hz
  Measuring Range : 1 to 99999 rpm
  Measuring accuracy : 0.05% ± 1 digit
  Supplies power for external sensor.
  13 various Function Modes
  Supplied with sensor PSN25-5DP
  Triple Output: High, GO, Low
  Meter without PSN25-5DP

VII. PRESET TACHOMETERS/PULSE METERS:

Model: MP5W   or Equivalent
  5-Digit Preset, Quintuple (5) Relay Output (HH, H, GO, L, LL)

FEATURES:
  Power Supply: 100 ~ 240VAC
  Preset Setting & Range: 1 to 99999 rpm
  Supplied with one standard sensor PSN25-5DP

VIII.  DIGITAL LCD TIMERS:

Common Specifications for LE3S/SA/SB:

* Time Ranges:  (10 Selectable ranges)
  Sec Min Hr.  10 Hr
  0.01– 9.99         0.1 – 99.9          0.1 – 99.9       10 – 9990
  0.1  –99.9          1.0 – 999           1.0 – 999
  1.0 –999

  S        0 min  01 Sec ~    9 min       59 Sec
  M        0 hour 01 min  ~    9 hour     59 min

* Size         :  48x48x74 mm
* Mounting:  Plug in Type, 8Pin(Screw terminal socket: 8-Pin, PS-08 or equivalent included)

FEATURES:
  Elapsed time indication by Bar Graph.
  Output state (N.O. or N.C.) indication by symbol mark.

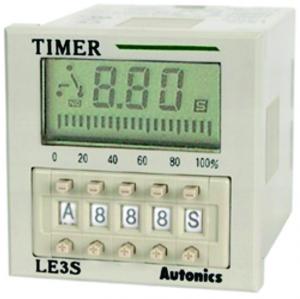

I.   Model No.  LE3S        100 ~ 240VAC/24V ~ 240VDC

Output modes: ON Delay, OFF Delay, Interval,
  Flicker, One Shot, Integration Time, etc.
Input Signals : START, INHIBIT, RESET
  Min input Signal time: 20 mS Control Output: Time Delayed 1C
Contact Rating:  5A/250VAC

II.   Model No.LE3SA       220VAC

Output mode: Power ON Delay
Control Output:  Time Delayed 2C
Contact Rating:  3A/250VAC

III. Model No.LE3SB       110V or 220VAC

Output Mode: Power ON Delay
Control Output:  Time Delayed 1C Instantaneous 1C
Contact Rating: 3A/250VAC

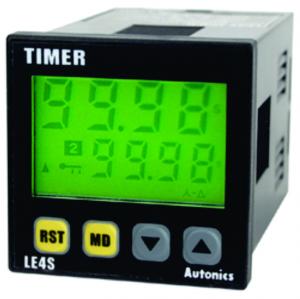

IV. Model No.LE4S         100V ~ 220VAC

Output modes:   ON Delay, Signal OFF Delay, ON-OFF Delay, Interval,
  Flicker, One Shot, etc.
Input Signals :   START, INHIBIT, RESET
  Min input Signal time: 20 mS
Control Output:  Time Delayed 1C
Contact Rating:  3A/250VAC

* Time Ranges:  (10 Selectable ranges)

  Sec. Min. Hr.
  0.01–    99.9                   0.1sec–     99 min 59 sec           1 min – 99 hrs 59 min
  0.1  – 999.9  0.1sec–   999.9 min 0.01–    99.99
  1.0 –9999                       1         – 9999 min                        0.1  –  999.9
      1.0  – 9999
* Size : 48x48x92 mm including Pins
  Mounting:   Plug in Type, 8Pin   (Screw terminal socket: 8-Pin, PS-08 or equivalent included)

FEATURES:
  LCD Display with Back Light
  Elapsed time indication by Digital Display
  Output state indication by 1 or 2 mark.
  Locking Function:  Lock 1: Lock 2: Lock 3 for protection against un-authorized user
  Memory: 40 days

Mode Display: it displays the current operation mode (Ex: ON  D = ON delay)

IX.   SINGLE RANGE ON-DELAY TIMERS

A)  Model No : ATE1-60S     0 – 60 sec 220VAC
Contacts : Delayed 2C, rating 3A  250VAC
  Single Range Timer, 8Pin Plug-in type

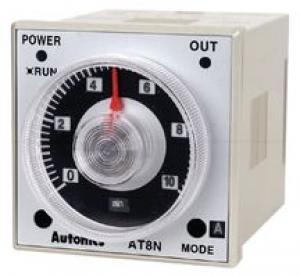

X.    MULTI-RANGE ON-DELAY TIMERS

A) Model No. :   AT8N   24~240VAC /DC
  Multi range Timer, 8 Pin Plug in type
  Control Time Setting Range: 0.05 sec ~ 100 hrs, 16 ranges
  Contacts :  Delayed 2C, rating 3A  250VAC
  Operation Modes :  Selectable ON Delay, One Shot, Flicker, Interval

XI.   POWER OFF-DELAY TIMERS

A)  Model No.: AT8PMN
Output mode: Power OFF Delay
  Control Time, Setting: 0.5 ~ 10 min
  Control Output: 2C, rating 3A  250VAC
  Power Supply: 200-240VAC

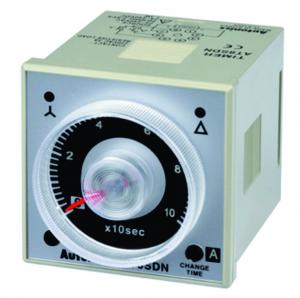

XII.   STAR-DELTA TIMERS

A)  Model No. : AT8SDN
Output Mode : Star - Delta
Control Time (T1) : 0.5sec ~ 100sec(max.)
Switching  Time  (T2) : 50ms ~ 500ms selectable
Control Output:  Star Contact: SPST (1a)
  Delta Contact: SPST (1a)
Power Supply:  24-240VAC/DC

NOTE:

This list is subject to change without notice and goods being in stock.  The prices in the list are reference prices and not sale  prices.
Discounts/Multipliers  are  applicable.    The  delivery,  packing  and forwarding  charges are  extra.    All despatches are made on buyer’s risk and account.
All despatches are made on buyer’s risk and account.
