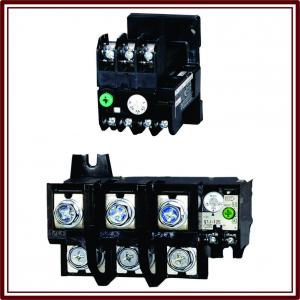

"TOGAMI" THERMAL OVERLOAD RELAYS |
|
|
|
|
|
|
|
|
|
|
|
|
|
ALL WITH |
: Three (3) Elements |
|
|
|
|
|
: Phase Failure Protection |
|
|
|
|
|
: Manual & Automatic Reset Facility |
|
|
|
|
|
: Independent Mounting |
|
|
|
|
|
: Mechanical Trip Indication (GTJ-18N, GTJ-35T35J & GTJ-400N) |
|
|
|
|
|
|
|
|
|
|
For PAK-11, 12J, 21J Model: GTJ-18N |
(Contacts: 1a+1b) |
|
|
|
|
|
|
|
|
|
|
|
Setting Ranges |
1.8 |
to |
2.8 |
|
|
|
|
|
2.9 |
to |
4.3 |
|
|
|
|
|
4 |
to |
6 |
|
|
|
|
|
6 |
to |
9 |
|
|
|
|
|
8.8 |
to |
13 |
|
|
|
|
|
12 |
to |
18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
GTJ-18N is with Independent/DIN Rail Mounting |
|
|
|
|
|
|
|
|
|
|
|
For PAK-21, 26, 35J Model: GTJ-35T |
(Contacts: 1a+1b) |
|
|
|
|
|
|
|
|
|
|
|
Setting Ranges |
12 |
to |
18A |
|
|
|
|
|
18 |
to |
25A |
|
|
|
|
|
24 |
to |
36A |
|
|
|
|
|
|
|
|
|
|
|
|
For Sizes: 2.5A, 3, 4 & 4.5: Model: GTJ-50 |
|
(Contacts: 1a+1b) |
|
|
|
|
|
|
|
|
|
|
|
Setting Ranges |
28 |
to |
42A |
|
|
|
|
|
40 |
to |
58A |
|
|
|
|
|
56 |
to |
80A |
|
|
|
|
|
68 |
to |
94A |
|
|
|
|
|
|
|
|
|
|
|
|
For Sizes: 5, 6, 7, 9 & 11: Model: GTJ-125 |
|
(Contacts: 1a+1b) |
|
|
|
|
|
|
|
|
|
|
|
Setting Ranges |
85 |
to |
125A |
|
|
|
|
|
110 |
to |
150A |
|
|
|
|
|
130 |
to |
190A |
|
|
|
|
|
|
|
|
|
|
|
|
For Sizes: 11, 13 & 14 |
Model: |
GTJ-400N With built-in CT |
(Contacts: 1a+1b) |
|
|
|
|
|
|
|
|
|
|
|
Setting Ranges |
215 |
to |
325A |
|
|
|
|
|
310 |
to |
470A |
|
|
|
|
|
400 |
to |
600A |
|
|
|
|
|
|
|
|
|
|
|
|
IMPORTANT NOTES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. TOGAMI pioneered the Automatic Power Distribution Equipment in 1922 which was patented worldwide. |
|
Basic Structure of AC Electromagnet was invented in 1924. |
|
|
|
|
The bimetal type Overload Relay was invented in 1930 and was patented worldwide. |
|
|
|
|
|
|
|
|
|
|
2. TOGAMI Overload Relays of smaller rating can be used with bigger sizes of TOGAMI Contactors. |
|
|
|
|
|
|
|
|
|
|
3. All the TOGAMI GT Overload Relays are also provided with PHASE FAILURE PROTECTION DEVICE, |
|
|
in case of failure of any one phase it will trip. |
|
|
|
|
|
|
|
|
|
|
|
|
4. The TOGAMI Contactors are most suitable for tough industrial uses like inching and plugging. |
|
